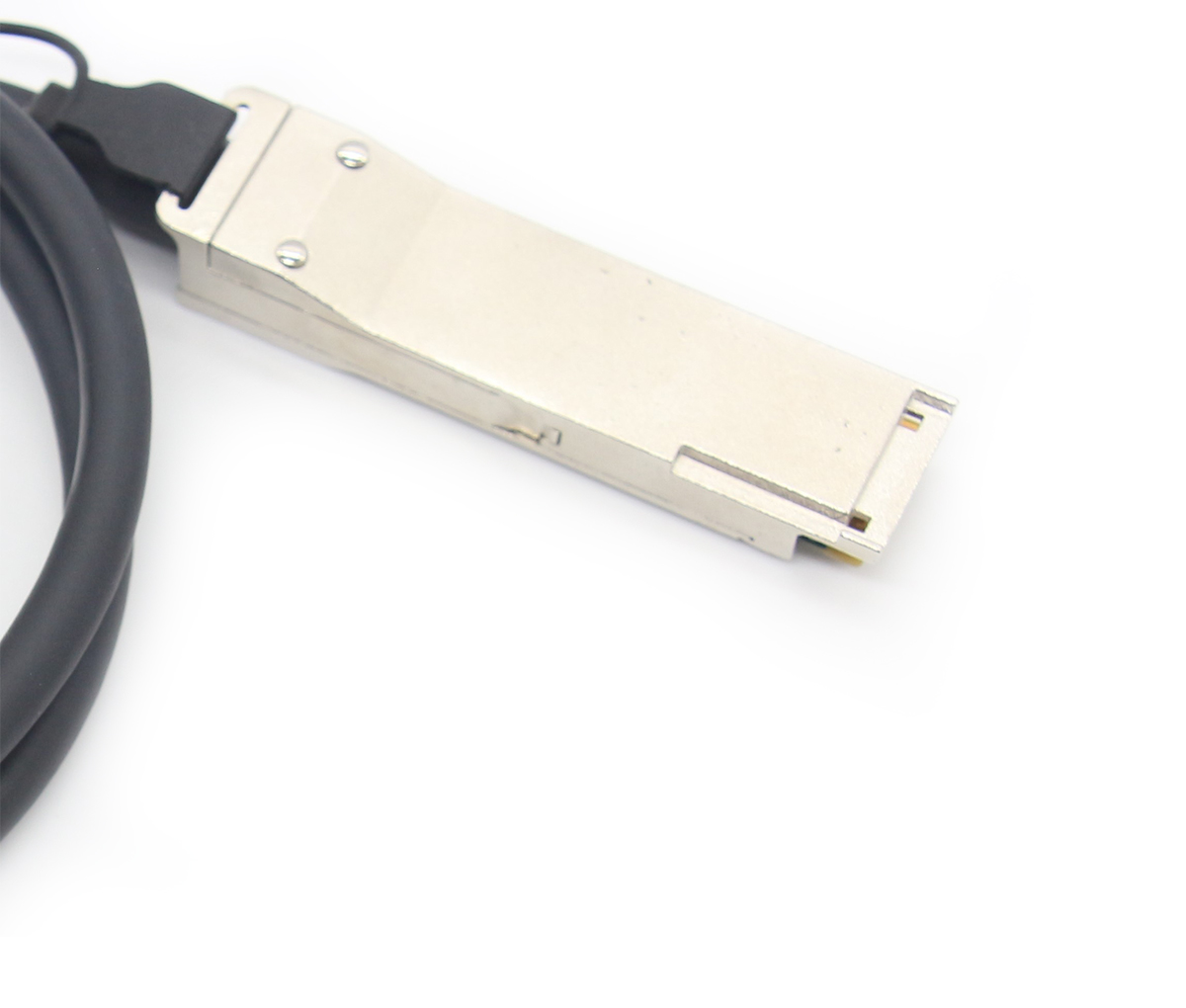

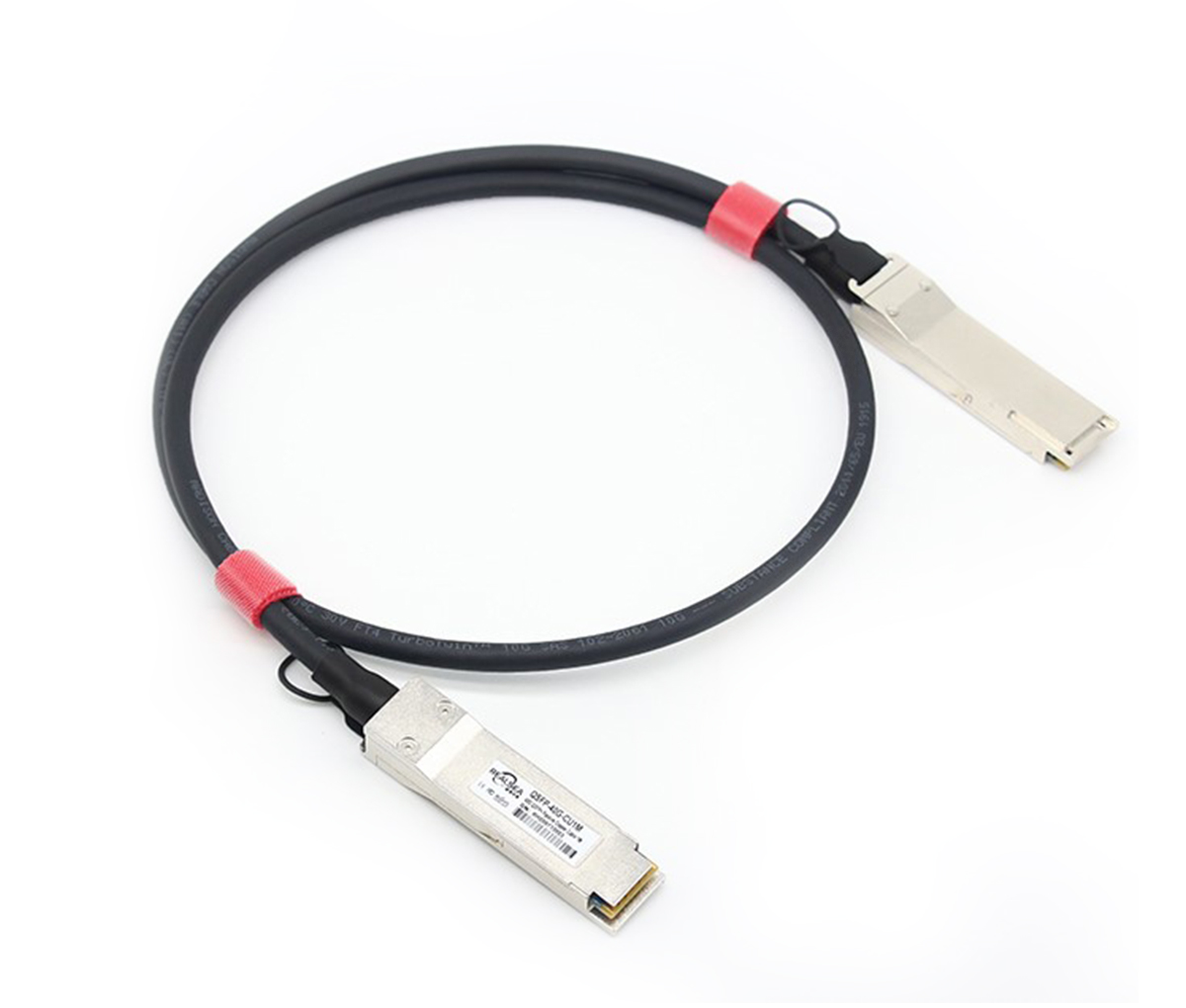

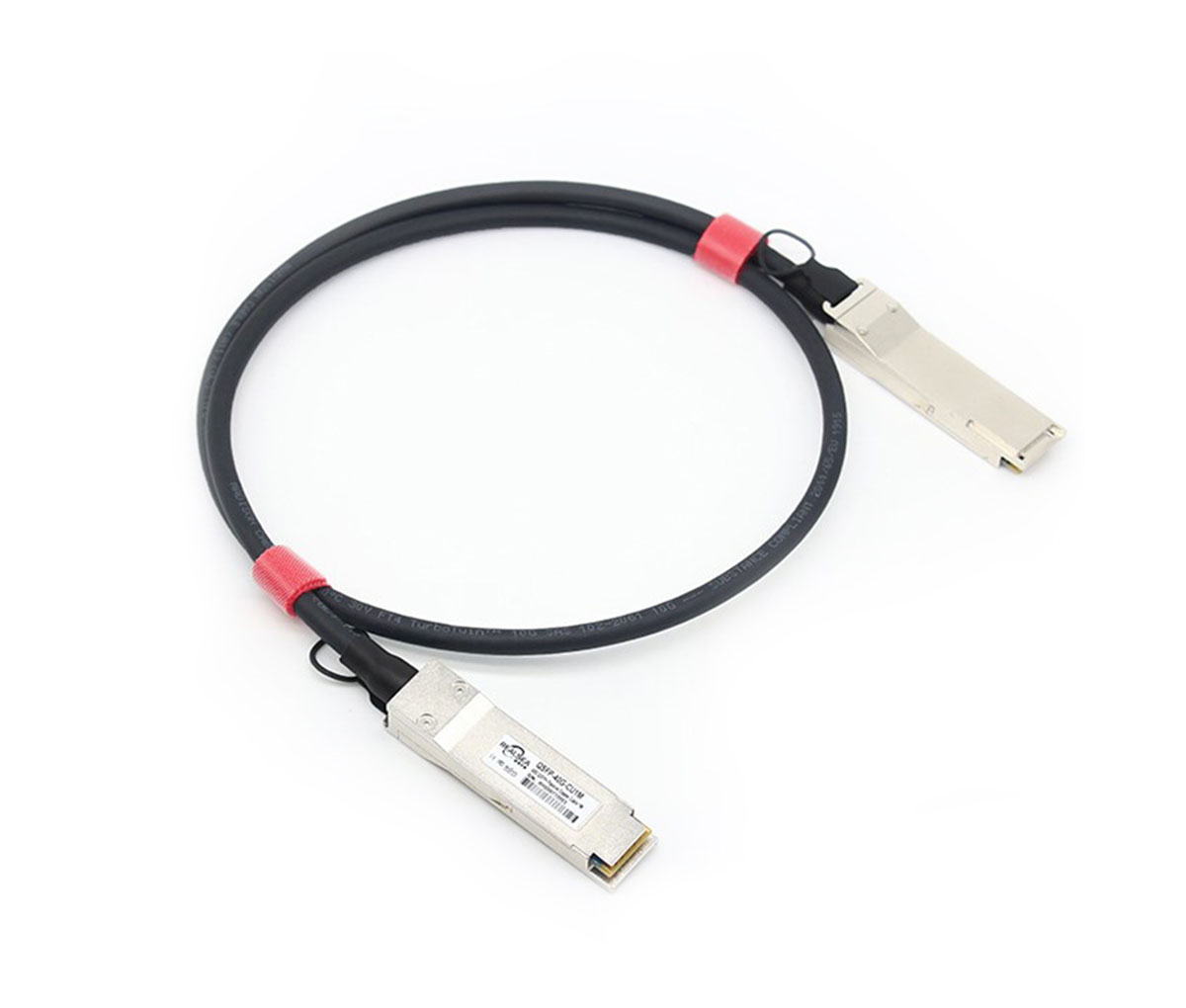

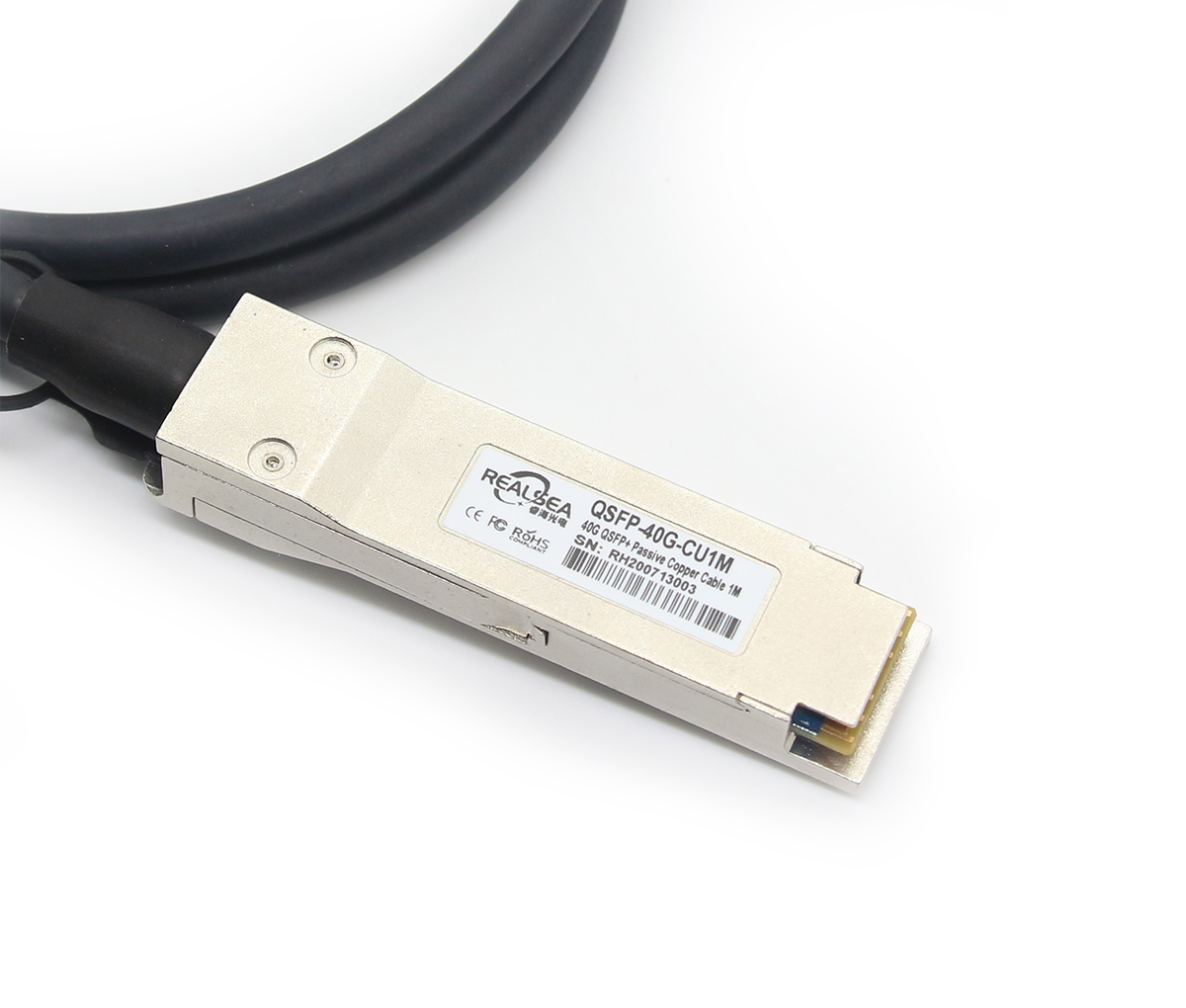

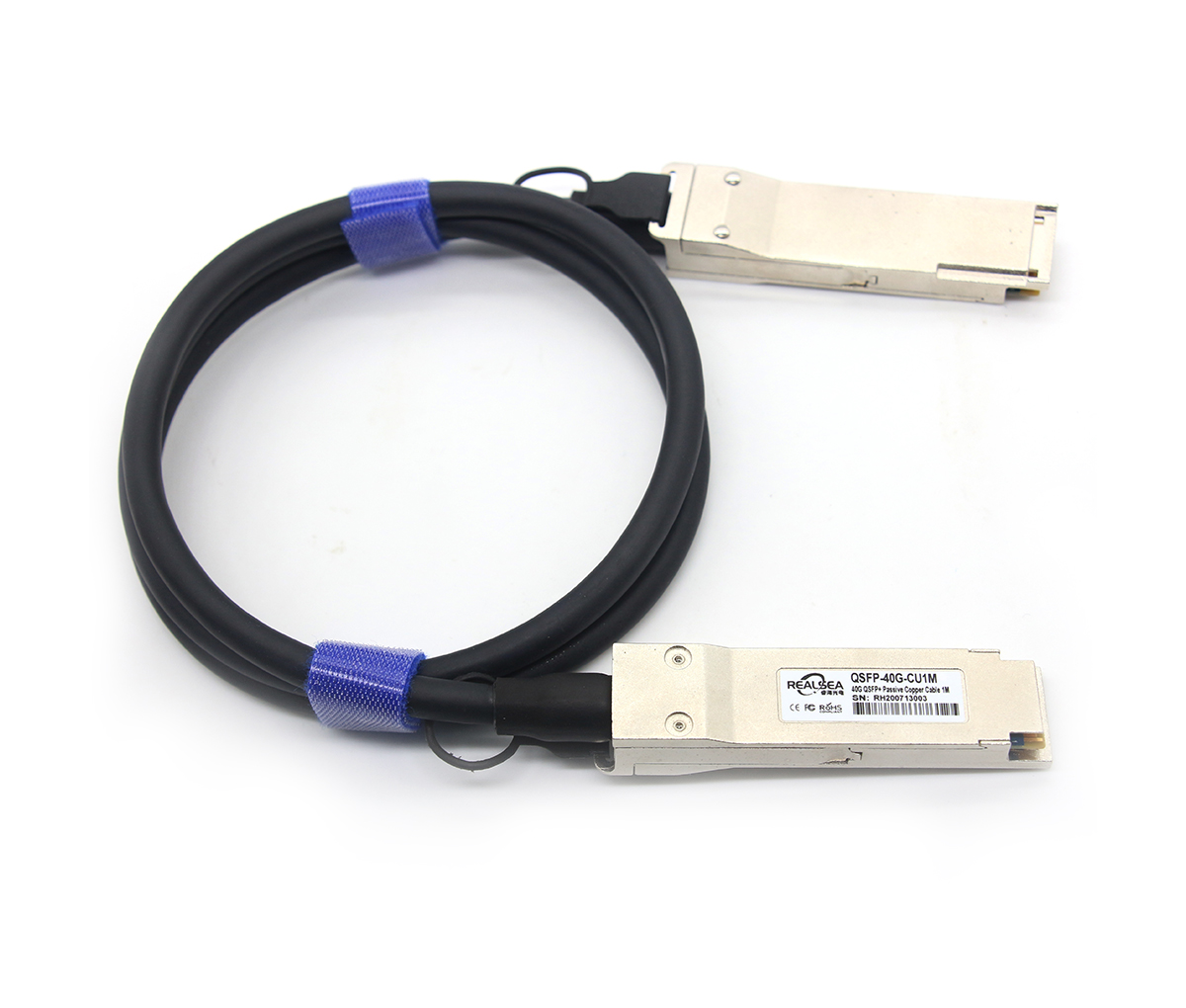

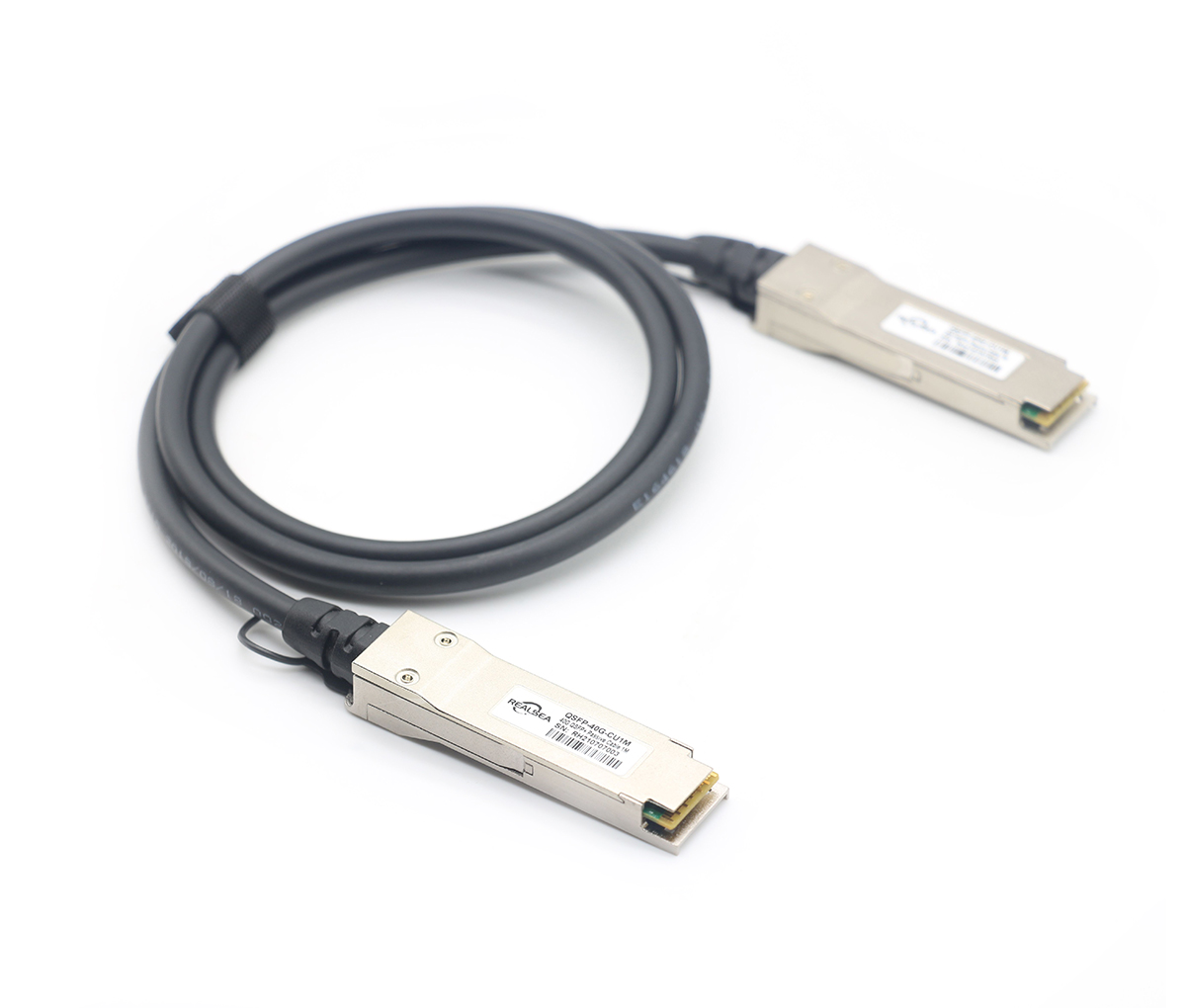

40G DAC 30AWG

RealSea’s 40G QSFP+ passive cable uses shielded high-speed differential cables,Compliant with 40G Ethernet standard and QSFP Multi-Source Agreement (MSA) standard, it supports 40G transmission rate and can be backward compatible with various speeds.QSFP10 passive cables are the preferred solution for short-haul applications. They are commonly used for data transmission between data centers and cabinets or adjacent cabinets. The biggest features are low cost, ultra-low power consumption (less than 0.1 watts) and high reliability.

Online inquiry Download

Share:

APPLICATION

Data center

Server

Switch

40Gigabit Ethernet

Features

STANDARDS COMPLIANCE

PERFORMANCE

General Specifications

Parameter

         Symbol

        Min

           Typ

        Max

       Unit

Data Rate

            DR


           40


     Gb/s

Bit Error Rate

           BER



       1012


Operating Temperature

             TC

              0


          70

       ◦C

Storage Temperature

            TSTO

        -40


          85

       ◦C

Input Voltage

             VCC

        3.14

           3.30

         3.46

              V


COMPATIBLE BRANDS

Product attributes

Product attributes

Brand

Realsea Technology

Part Number

QSFP-40G-CU*M

Data Rate

40Gbps

Connector Type

QSFP+ to QSFP+

Wire AWG

30AWG

Cable Length

1~3m (3.28ft)

Cable Type

Passive Twinax

Minimum Bend Radius

23mm

Power Consumption

<0.5W

Jacket Material

PVC (OFNR)

Commercial Temperature

0 to 70°C (32 to 158°F)

Warranty

3 year
