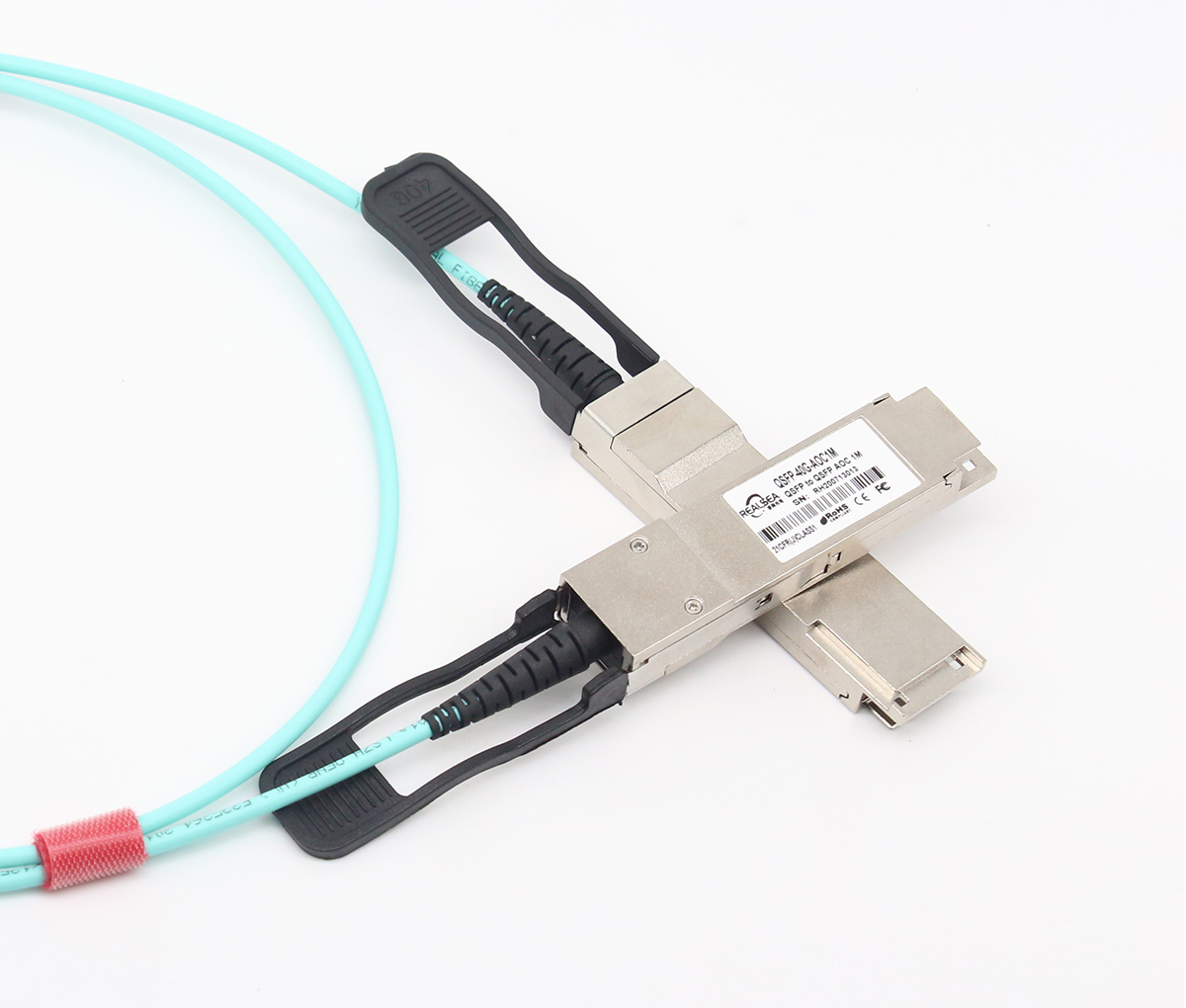

40G AOC OM3

RealSea’s 40Gb/s QSFP+ Active Optical Cable is a 4-channel active optical cable for 40G Ethernet applications that is designed to meet the QSFP+ 10Gbps 4X Pluggable Transceiver SFF-8436 specification. This full-duplex optical assembly offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps. The cables use the standard multimode fiber cable carrying a nominal wavelength of 850nm. The electrical interface uses a standard 38 contact edge type connector and is electrically compliant with the SFI+ and PPI interface supporting Infiniband, Ethernet, Fiber Channel. The connector is hot pluggable and provides I2C serials access via an on-board microcontroller. QSFP+ AOC can be used as a direct replacement for traditional copper cables with the added benefit of a lighter weight and smaller diameter solution for cable lengths from 1 to 100 meters.

Online inquiry Download

Share:

APPLICATION

Data center

Server

Switch

40G Ethernet

Features

STANDARDS COMPLIANCE

PERFORMANCE

General Specifications

Parameter

         Symbol

        Min

           Typ

          Max

        Unit

Data Rate

            DR


           40


        Gb/s

Bit Error Rate

           BER



         10−12


Operating Temperature

             TC

              0


            70

        ◦C

Storage Temperature

            TSTO

        -40


            85

        ◦C

Input Voltage

             Vcc

       3.14

           3.30

           3.46

               V

Maximum Voltage          VMAX        -0.5

             4            V
Supply Current            Icc
         180           290         mA
Product Weight            G
         98.5
       g/PCS
Fiber Optical Cable Weight            G
          5.8
         g/M



COMPATIBLE BRANDS

Product attributes

Product attributes

Brand

Realsea Technology

Part Number

QSFP-40G-AOC*M

Data Rate

40Gbps

Connector Type

QSFP+ to QSFP+

Cable Length

1~100m

Cable Type

OM3

Minimum Bend Radius

7.5mm

Power Consumption

<0.5W

Jacket Material

PVC (OFNR)

Commercial Temperature

0 to 70°C (32 to 158°F)

Warranty

3 year
